ELECTRONIC VALVE SAVER KIT

  • OPTIMUM DOSING

    ELECTRONIC VALVE SAVER


    How does the Valve Saver Sequent plus work?

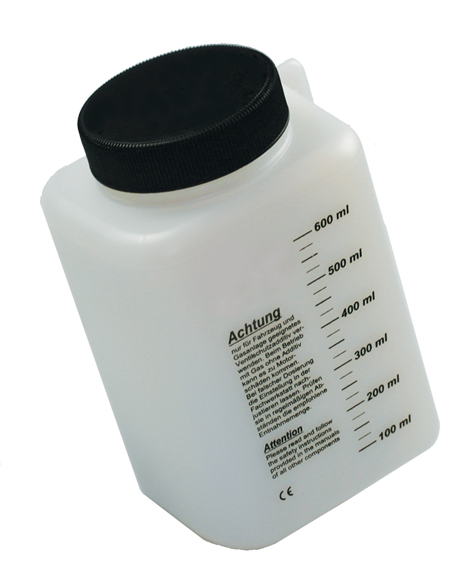

    The system consists of an Additive-tank and a dosing unit.

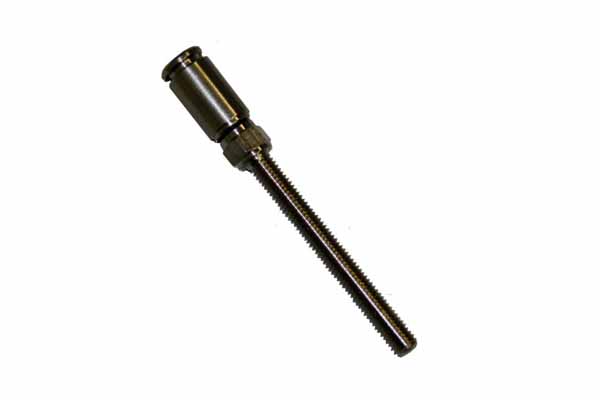

    The solution is compatible with cars with direct fuel injection or for Reducer systems with the introduction of the additive via a nozzle.

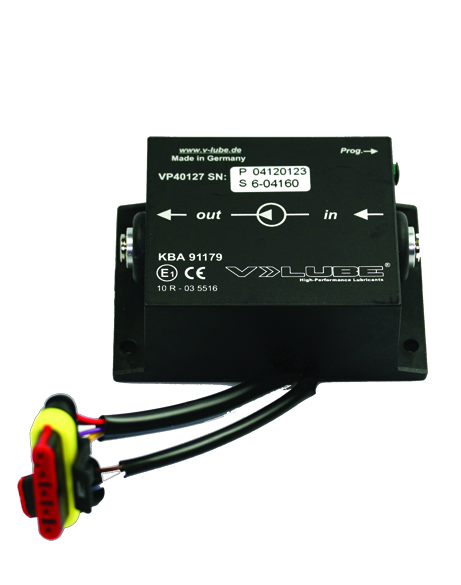

    General Information

    The dosing unit is available in 4 or 6 cylinder models, which are moulded in a compact casing.There are no standards regarding the installation position. The intelligent electronic controlled microvalve and pump are dependent on the Engines performance. The number of cylinders and the dosage can be set on 8 upto 15 levels without the help of a PC with a touch of a button.

    With Vehicle Type Approval


    Performance characteristics

    • Additive used accordingly with the requirements
    • no risk of over- or underdosing
    • Filling level control with the help of the LED signaller
    • easy programming (with or wihtout the software)
    • Installer friendly installation thanks to fast couplings
    • Optional function: disabling of the lpg installation
    • Also compatible with turbo enginest!

    Technical Data

    • Power supply: 12V DC (10V – 15V)
    • current consumption : inoperative 30mA , Ventilstoß bis 6A
    • Weight : 1050g
    • Dimensions L/W/H : 145mm x 125mm x 56mm
    • Equipment-installation position: random
    • Temperature range : -20/+85°C
    • Protection class IP54
    • Sealing materials : FKM (Viton)/Elastomer highly  temperature- and Weatherresistant. Compatible with acids, bases, fuels and oils (also synthetic).




  • Pdf DATENBLATT ELECTRONIC VALVE SAVER
    Produktbeschreibung Electronic Valve Saver und Electronic Valve Saver plus

    Pdf Fahrversuch zum Ventilverschleiß der HTW Saarland
    Fahrversuch zum Ventilverschleiß der HTW Saarland

    Pdf HANDBUCH Electronic Valve Saver
    Handbuch für das Electronic Valve Saver Kit
