ELECTRONIC VALVE SAVER KIT PLUS

  • OPTIMUM DOSING

    ELECTRONIC VALVE SAVER PLUS


    How does the Valve Saver Sequent plus work?

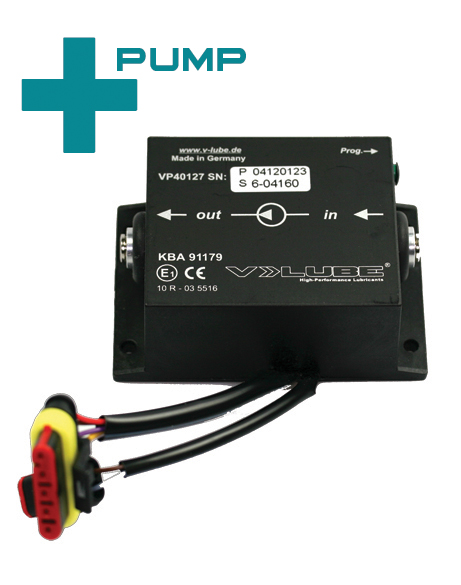

    The system consists of an Additive-tank and an Additive pump, controlled by an electronically programmable Controller.
    The opening times of the gas-injectors are  used to calculate the appropriate additive dosage. On the basis of this we achieve the additive dosing appropriate to the actual needs.

    General Information

    There are no standards regarding the installation position. The intelligent electronic controlled microvalve and pump are dependent on the Engines performance. The correct functioning of the pump and valves is also secured by the implemented pressure sensor. The number of cylinders as well as the dosage can be introduced with the use of software.

    With Vehicle Type Approval

    Software

    The correct dosage can be adjusted to all possible needs of the car, with the use of a notebook and the free of charge software. The viscosity parameter are preset in the V-LUBE Edition.

    The software contains a car data base in order to save certain settings and load them when required.

    Performance

    • Additive used accordingly with the requirements
    • no risk of over- or underdosing
    • consistent and consumption dependent additive dosing on entire conduction band of your engine
    • Filling level control with the help of the LED signaller
    • Error monitoring, autodiagnosis
    • Optional function: disabling of the lpg installationin case of an empty additive tank
    • Installer friendly installation thanks to fast couplings
    • good for refitting
    • all of the sealing gaskets are made of high quality FKM (Viton)
    • reasonable price
    • compatible with turbo engines
    • tried and tested

    Technical data

    • Power supply: 12V DC (10V – 15V)
    • current consumption: inoperative 30mA,
    • Pump thrust: up to 6A
    • Pump pressure:Max. 5 BAR
    • Weight: central 450g/sequential 1100g
    • Temperature range: –20/+85°C
    • Protection class: IP54
    • Dimensions
    • Dosing module central _ L/W/H mm:
    • 100 x 70 x 40
    • sequentiall _ dimensions L/W/H mm:
    • 145 x 95 x 56
    • Geräte-Einbaulage: beliebig

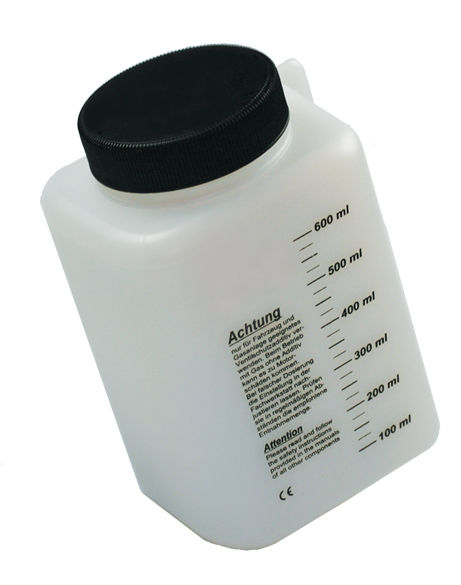

    • supply tank:
    • Dimensions W/H/D mm: 110 x 155 x 80
    • Filling quantity: about 600ml


    Sealing material: FKM (Viton)/Elastomer highly  temperature- and Weatherresistant. Compatible with acids, bases, fuels and oils (also synthetic). All of the materials implemented in the Valve Saver Protector are of high quality.

  • Pdf Fahrversuch zum Ventilverschleiß der HTW Saarland
    Fahrversuch zum Ventilverschleiß der HTW Saarland

    Pdf DATENBLATT ELECTRONIC VALVE SAVER
    Produktbeschreibung Electronic Valve Saver

    Pdf HANDBUCH Electronic Valve Saver plus
    Handbuch und Anschlussplan Electronic Valve Saver plus

  • ZIP TREIBER USB Electronic Valve Saver
    USB Treiber für die Electronic Valve Saver plus Editionen
